Details:

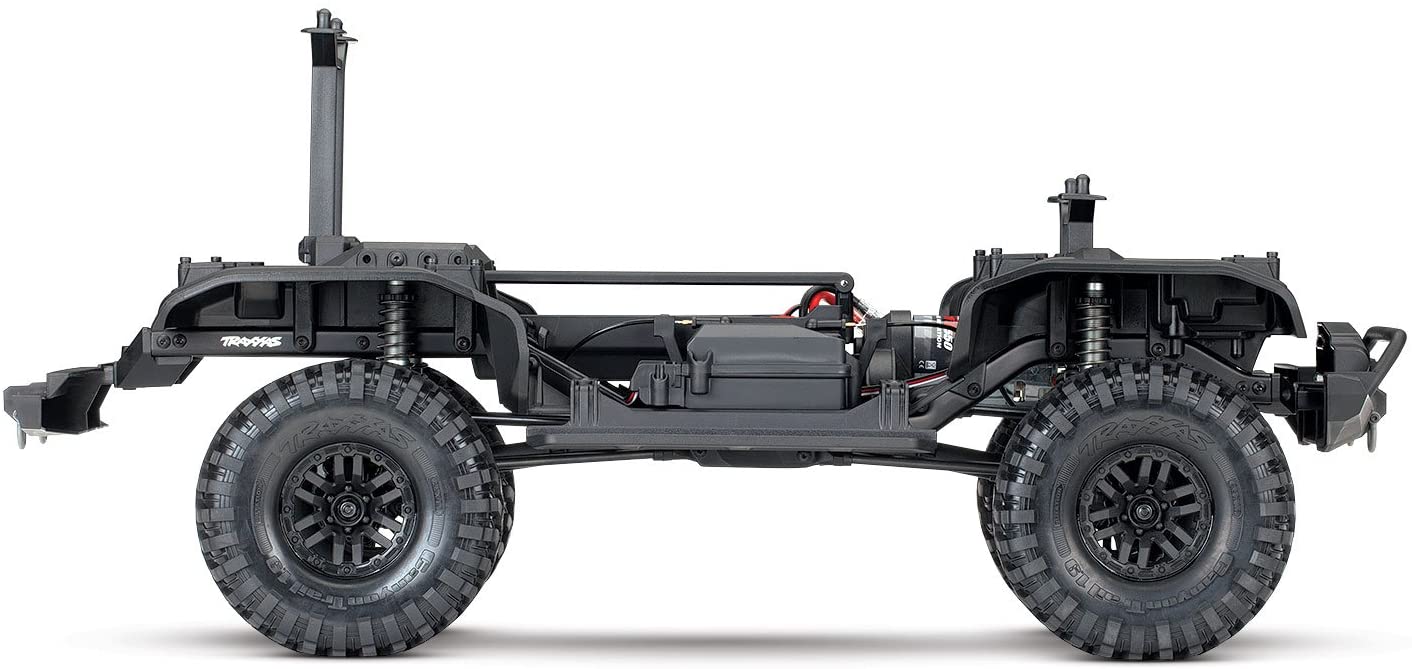

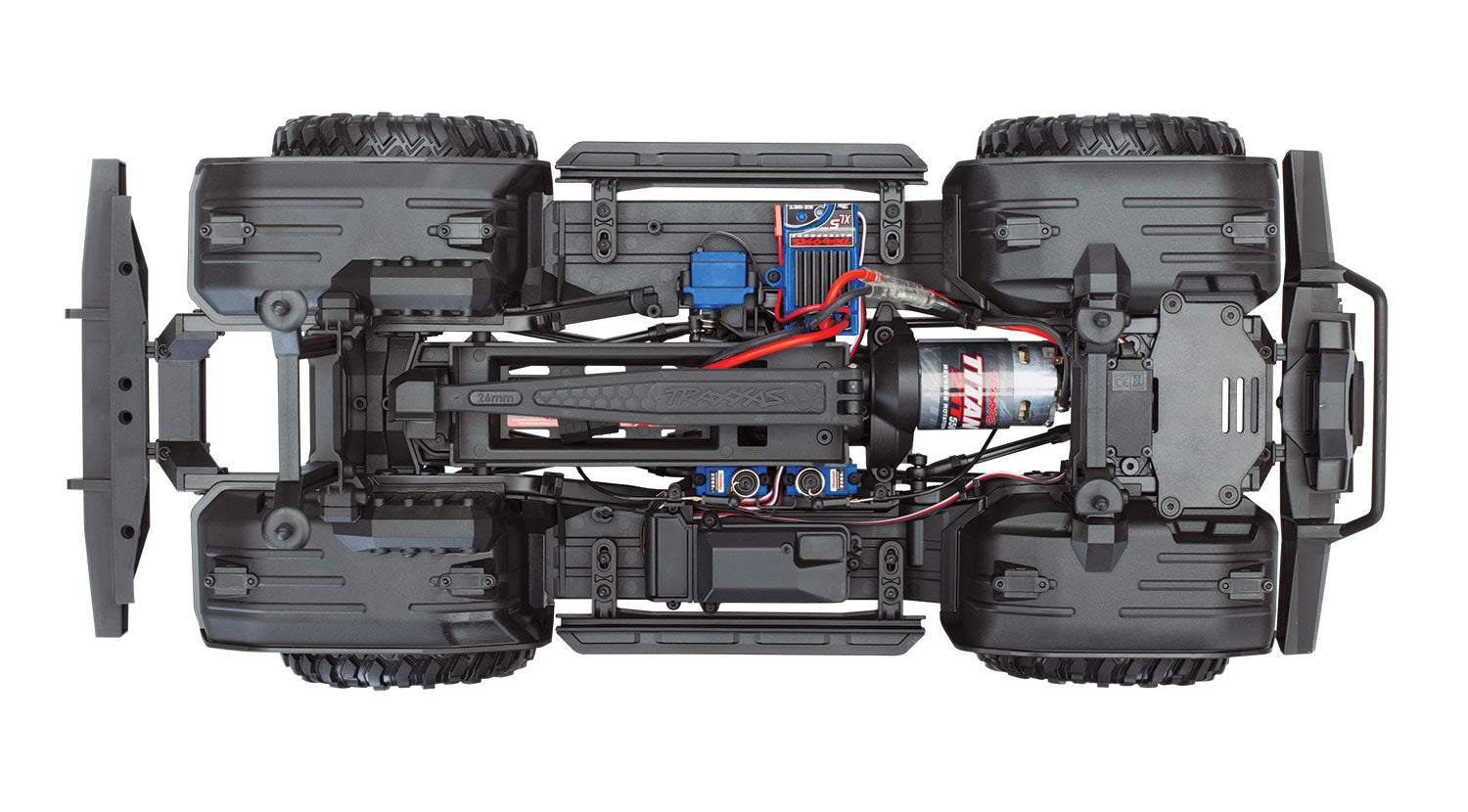

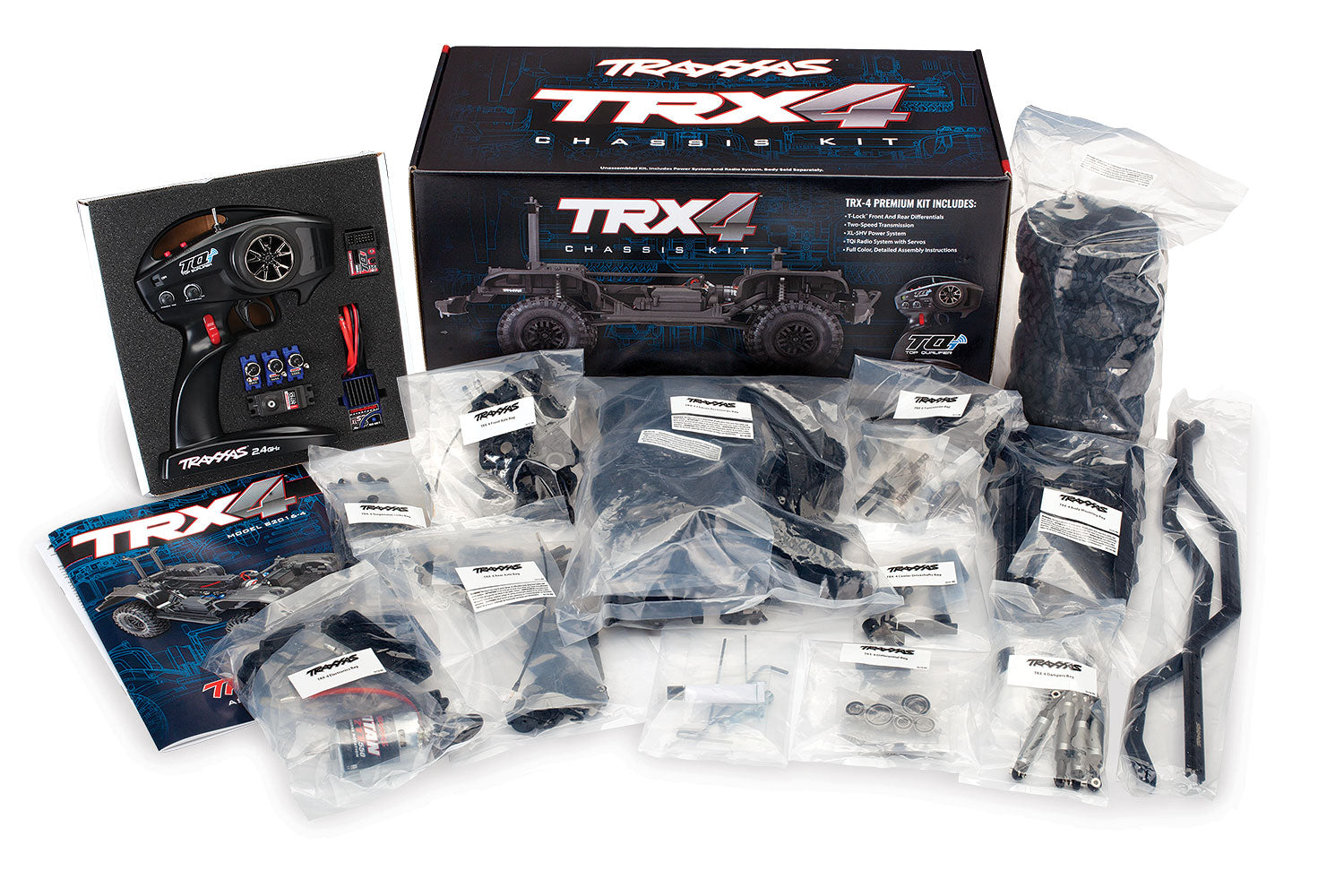

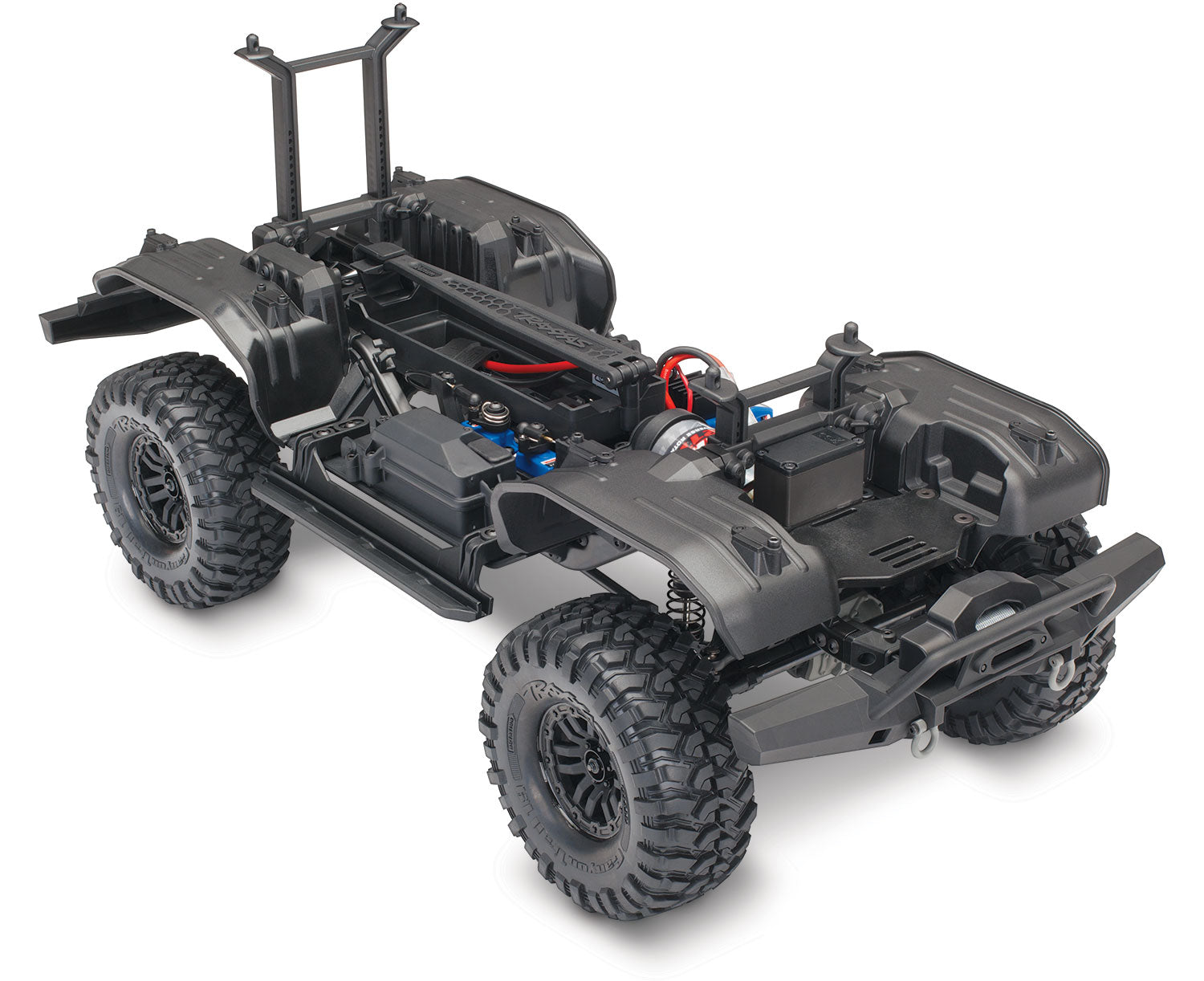

The Traxxas TRX-4 Scale and Trail Crawler chassis kit offers the same innovative features as the RTR vehicle, combined with the fun and excitement of building your own kit. Build your own portal axles, high/low range transmission, and remotely locking differentials. All the parts are organized neatly in labeled bags with waterproof electronics and pre-assembled shocks and suspension links. A fully illustrated color manual makes the kit as much fun to construct as it is to take off-road.
Specifications:
- Length: 20.57 inches (523mm)
- Front Track: 9.78 inches (249mm)
- Rear Track: 9.78 inches (249mm)
- Ground Clearance: 3.14 inches (80mm)
- Weight: 6.42lb (2.91kg)
- Height: 10.47 inches (266mm)
- Wheelbase: 12.28 inches (312mm)
- Front Shock Length: 3.54 inches (90mm)
- Rear Shock Length: 3.54 inches (90mm)
- Approach Angle: 63.82
- Departure Angle: 43.22
- Breakover Angle: 58.93
- Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
- Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
- Front Tires: 4.64 x 1.89 inches (118 x 48mm)
- Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
- Wheel Hex: 12mm
- Speed Control: XL-5 HV
- Motor (electric): Titan 21T Reverse Rotation
- Transmission: 2-speed Hi-Lo, Remote Shifting
- Gear Pitch: 32
- Brake Type: Electronic Hill Hold
- Skill Level: 2
- Battery Tray: 158.75 L x 47 W x 23/26mm H
