Futaba 3PV R304SB 3PV with R304SB RX Telemetry TFHSS

Details:

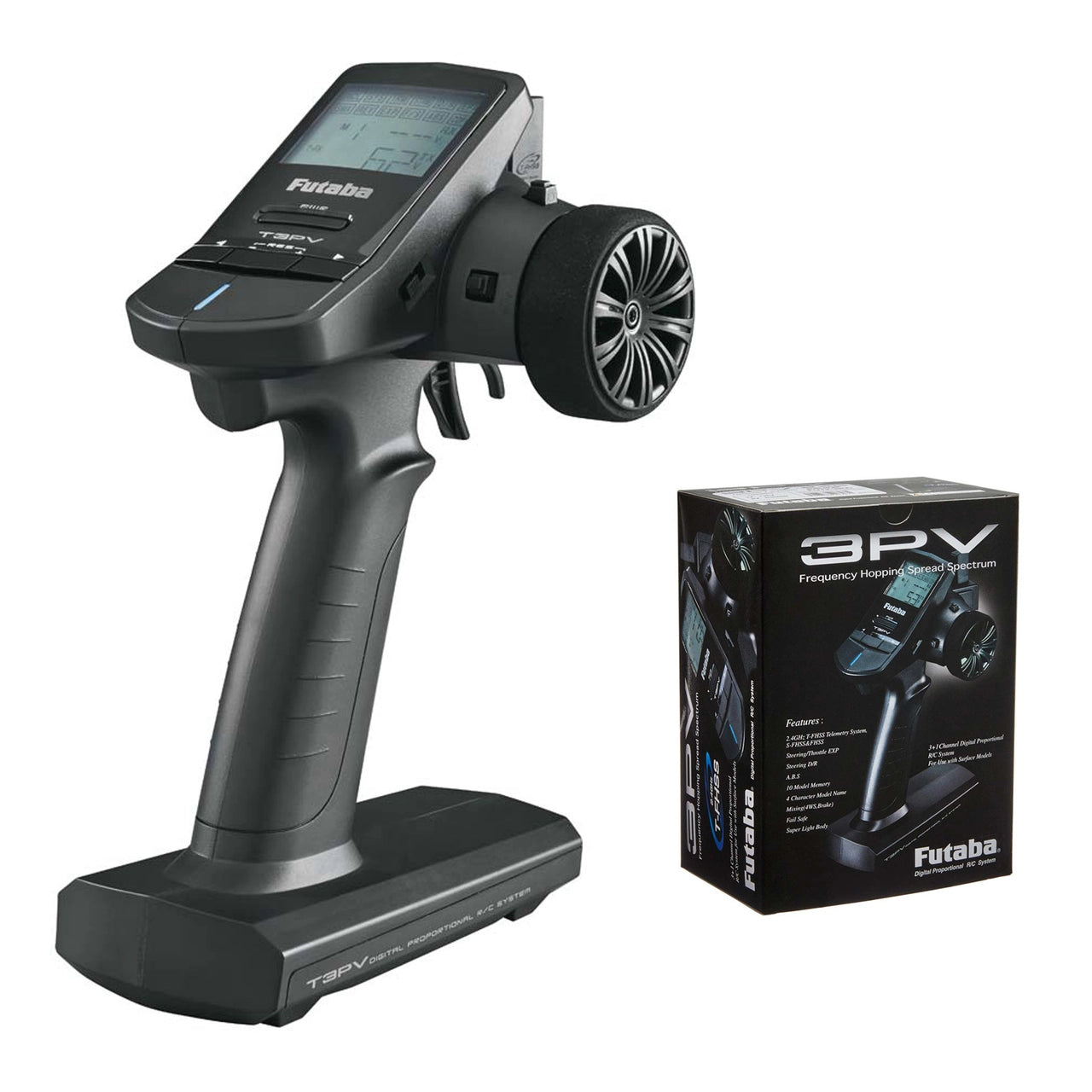

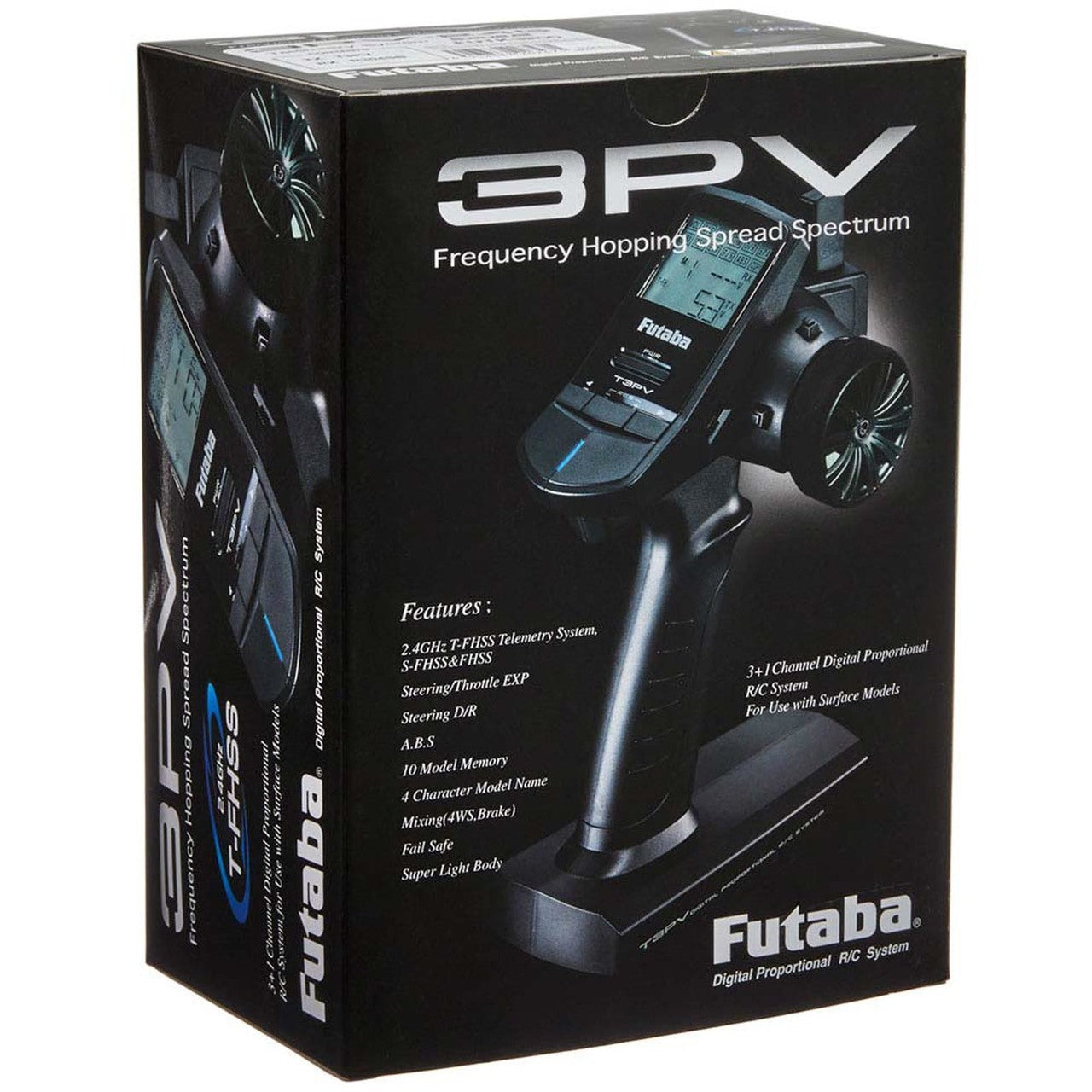

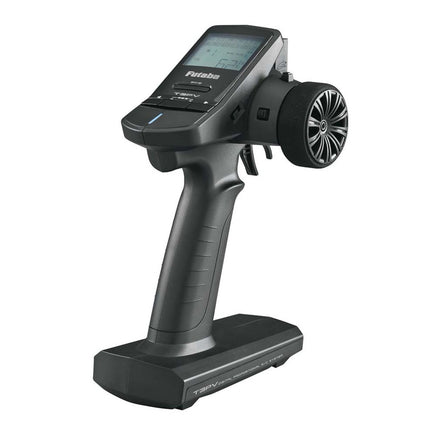

Futaba 3PV 3-Channel Telemetry Radio System with the 4-Channel R304SB T-FHSS Telemetry Receiver.

3PV R304SB 3PV w/R304SB RX Telemetry TFHSS by Futaba.

FEATURES:

• FHSS/S-FHSS/T-FHSS protocols
• Large, easy to read programming screen
• Four wheel steering and brake mixing
• Model data copy
• Anti-lock brake system (ABS) function
• R304SB telemetry receiver
• Link Mode
• DT3 selection
• SW1
• Throttle fail safe
• Steering and throttle trim
• Channel 4 trim
• Sub trim
• Steering dual rate adjustment
• Steering and throttle end point adjustment
• Channel 3 and 4 end point adjustment, and servo reversing
• Steering and throttle exponential
• Auto power off after ten minutes

INCLUDES:

Futaba 3PV 3-CH Transmitter, 4-CH R304SB T-FHSS Telemetry Receiver Instruction Manual

REQUIRES:

AA Batteries: Four for transmitter (may also be powered by the Futaba HT5F1800B 6V NiMH pack FUTM1482, or the Hobbico LiFe 6.6V 1900mAh pack, HCAM6521

SPECS:

Transmitter; Transmitting Frequency: 2.4GHz band Power Requirement: Four AA cells Current Drain: 100mA or less Transmission Antenna: Dipole (built in) Communication Method: Two way T-FHSS,one way S-FHSS, FHSS operating system R304SB Receiver; FUTL7680 Power Requirement: 4.8 - 7.4V battery (dry cells cannot be used) Receiving Frequency: 2.4GHz System: T-FHSS (auto detection) with SBUS2 port Dimensions: 1.38 x 0.91 x 0.33" (35.1 x 23.2 x 8.5mm) Weight: 0.23oz (6.6g) Antenna Length: 7.5" (190.5mm)
