Light Weight Standard Ball Bearing Servo

Details:

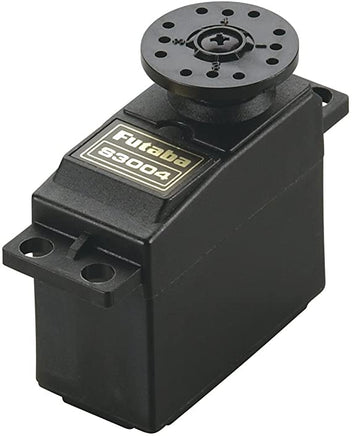

Futaba Light Weight Standard Ball Bearing Servo. Futaba S3004 Light Weight, Ball Bearing Servo. This basic servo is used in cars, boats, or where standard servos are used. Note: This servo is not designed for use with glow-powered helicopters. replacement for the following servos.(S15) This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps.

FEATURES:

• Single ball bearing on output shaft
• Precise tight fit throughout the geartrain
• Being standard size and lightweight, it fits many applications.
• Three pole motor
• Nylon gears
• One year warranty

INCLUDES:

One S3004 standard servo with preinstalled round servo horn(FSH6W) Four brass eyelets Four Black one-piece rectangular rubber grommets (FUTM2348) Four servo mounting screws Three servo horns (1 lg. round, 1 lg."X" and 1 sm. "x")

SPECS:

Speed: 0.23 sec/60 @ 4.8V 0.19 sec/60@ 6.0V Torque: 44 oz-in (3.2 kg-cm) at 4.8V 57 oz-in (4.1 kg-cm) at 6.0V Dimensions: 1.6 x 0.8 x 1.4" (1-9/16 x 13/16 x 1-7/16") (40 x 20 x 36mm) Weight: 1.3 ounce (1-5/16oz) (37 grams) Connector: "J" type with approx. 5" wire

COMMENTS:

inch (millimeters) 1.42 (36) bottom to top of case (not output shaft) .60 (15) flange to top of shaft 1.0 (25) flange to bottom of servo 1.59 (40.4) case length {holes on-center 1.93 (49)} .78 (19.8) case width {holes on-center .39 (10)}
